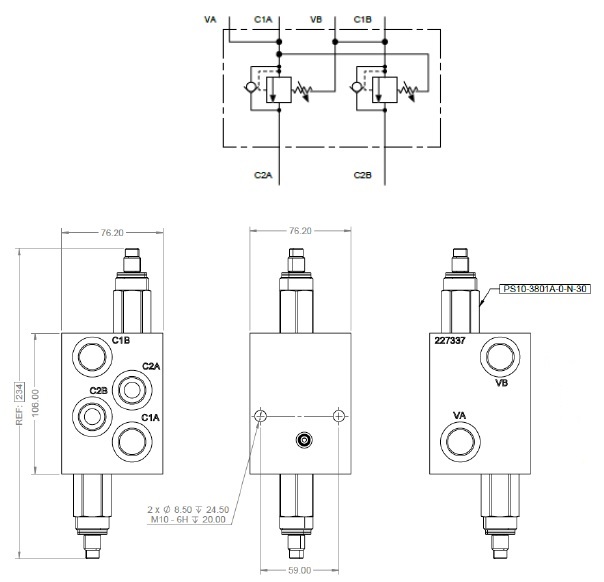

OP156 100 lpm Double Sequence Valve
Oilpath 100 lpm Double Sequence Valve including reverse flow check valves, with adjustment range
between 10-210 bar.
FEATURES
• Maximum working pressure……………………………. Aluminium 210 bar (3000 psi)
• Port sizes…………………………………………………………….1/2” bspp
• Cartridges…………………………………………………………….HydraForce
MATERIAL SPECIFICATIONS BODY
• Body …………………………………………………………………..High tensile aluminium
* Contact factory for alternative sizing and options
Part No. Description List Price

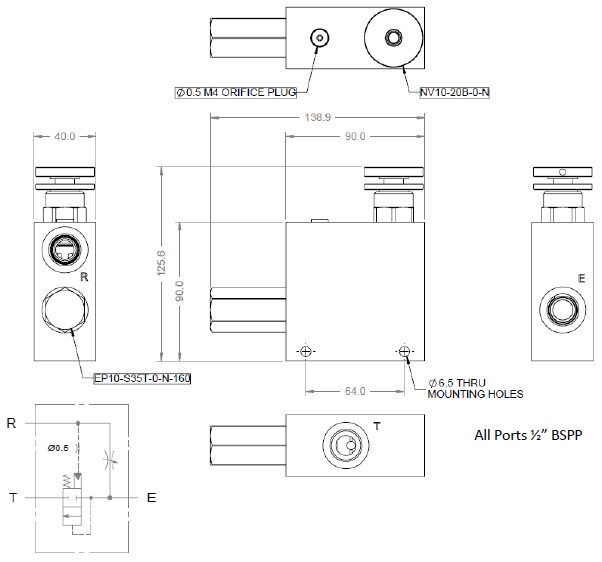

OP157 3-way pressure compensated flow regulator
Oilpath pressure compensated, three-way bypass type with maximum inlet flow of 90 lpm,
maximum regulated flow of 55 lpm and maximum pressure of 210 bar.
FFEATURES
• Maximum working pressure……………………………. Aluminium 210 bar (3000 psi)
• Port Size………………………………………………………………1/2”bspp
• Cartridges…………………………………………………………….HydraForce
MATERIAL SPECIFICATIONS BODY
• Body …………………………………………………………………..High tensile aluminium
* Contact factory for alternative sizing and options
