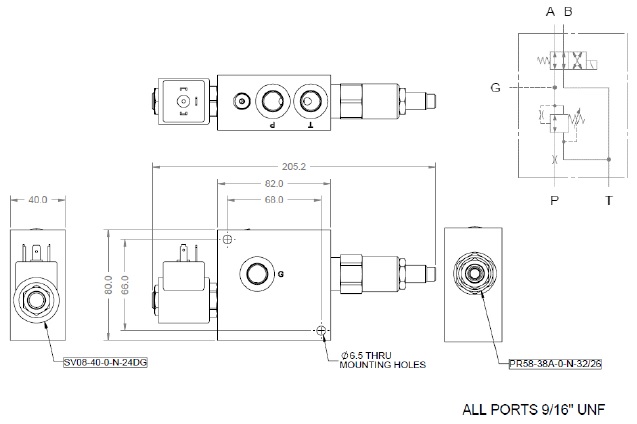

OP137 Quick Hitch Valve
Oilpath OP137 Quick Hitch Valve is an economically priced, ultra-compact, quality valve, utilising
HydraForce dirt tolerant cartridges. Available with 12 or 24 volt coils
FEATURES
• Maximum working pressure……………………………. 350 bar (5000 psi)
• Port Size……………………………………………………………….9/16”unf
• Gauge Port……………………………………………………………1/4”bspp
• Cartridges…………………………………………………………….HydraForce
• Reduced pressure to cylinder
• Orifice allows connection to high flow circuits
MATERIAL SPECIFICATIONS BODY
• Body …………………………………………………………………..Ductile Iron
* Contact factory for alternative sizing and options
Part No. Description List Price

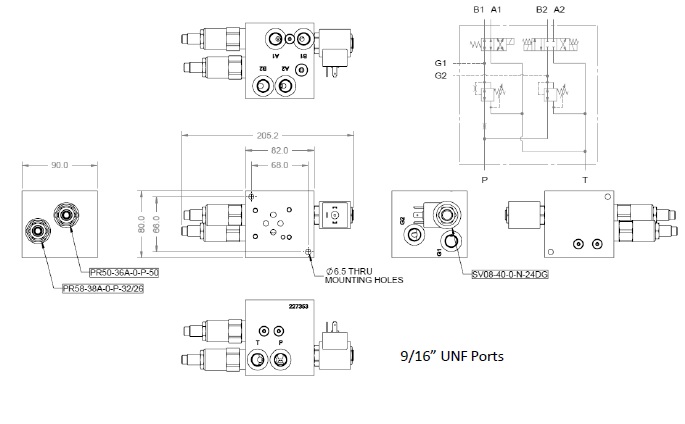

OP140 Quick Hitch & Tilt Valve
Oilpath OP140 Quick Hitch & Valve is an economically priced, compact, quality valve, utilising
HydraForce dirt tolerant cartridges. Available with 12 or 24 volt coils
FEATURES
• Maximum working pressure……………………………..0-350 bar (5000 psi)
• Port size……………………………………………………………….9/16”unf
• Gauge Port…………………………………………………………..1/4”bspp
• Cartridges…………………………………………………………….HydraForce
• Reduced pressure to cylinder
• Orifice allows connection to high flow circuits
MATERIAL SPECIFICATIONS BODY
• Body …………………………………………………………………..Ductile Iron
* Contact factory for alternative sizing and options
Part No. Description List Price
